For Sale Acoustic Energy AE-3 MK1 Floorstanding Loudspeakers

Further Information

Not to be confused with the later "Home Theatre" offerings, these were a true Audiophile Speaker when released in 1992.

Condition is good, with just a few scuffs to be seen.  They play perfectly, although be aware you will need an amplifier with high current ability to hear them at their best.

Each speaker is 35Kg and the genuine stands weigh slightly more. So you're looking at 70Kg+ per side.  They're also 'Tri Wireable" but can be run with just a regular stereo amplifier. With the right amp, the Bass is some of the hardest hitting and most dynamic I've heard - It'll literally make you jump !

I'm happy to discuss shipping, but packing and shipping will be at the buyers cost.  I'm not far from our local Pack & Send and they're experienced with packing audio components for safe shipping.

Specifications

Frequency Response;  25hz - 30,000 Hz

On Axis of HF at 1 m :  55 Hz - 17,000 Hz ±2,5 dB

On Axis of MF at 1 m :  55 Hz - 17,000 Hz ±2,0 dB

Off Axis of HF±30° Horizontal at 1 m :  55 Hz - 14,000 Hz ±3 dB

Off Axis of HF +15° Vertical at 1 m :  55 Hz - 17,000 ±3 dB

Off Axis of HF - 15° Vertical at 1 m :  55 Hz - 16,000 ±2 dB

Sensitivity:  87 dB

Impedance:  4 Ω min. At 110 Hz (typically 6 Ω)

Total Harmonic Distortion:  typically 0,3% (range 200 Hz - 20 kHz)

Power Compression Factor:  Not measurable below 100 watts power input from band limited pink noise 63 Hz - 20 kHz

Power Handling:  for use with amplifiers up to 250 watts RMS

Crossover:  3-way system Crossover frequencies 300 Hz and 3 kHz. 18/24 dB per octave filter slopes, 32 element - all coils low DCR (Iron Dust Core or Air Core) all capacitors low loss electrolytic or polyester

LF Unit:  40 mm Edgewound ribbon copper voice coil on high thermal conductivity former thermally coupled to tri-layer ultra hard alloy 160 mm diaphragm, max linear electrical peak to peak excursion - 10 mm max. Mechanical peak to peak excursion - 20 mm

MF Unit:  32 mm Edgewound ribbon copper plated aluminium voice coil on high thermal conductivity former thermally coupled to tri-layer ultra hard alloy, 90 mm Diaphragm, high gauss, low viscosity ferrofluid damped and cooled.

HF Unit:  25 mm Edgewound ribbon copper plated aluminium voice coil thermally coupled to magnesium alloy 25 mm Diaphragm. Ferrofluid damped and cooled. Damped rear chamber loaded.

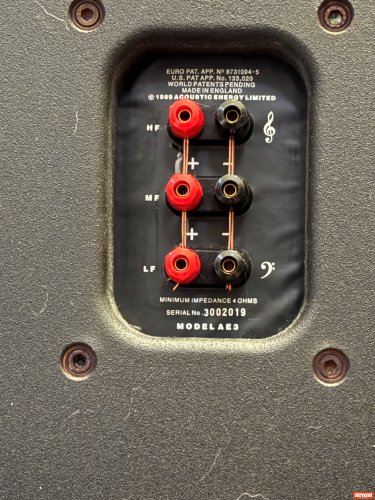

Connectors:  3 set 4 mm Binding posts for Tri-wiring

Cabinet:  Precision engineered MDF enclosure with bonded high density lining finished in black texture, Supplied with removable front grille

Dimensions (W x D X H):  275 mm x 385 mm x 640 mm

Weight:  35 kg (each)

.
