VanArn Posted July 19, 2023 Posted July 19, 2023 (edited) I am mistaken about the 800401 version. It is not a coated paper cone model, that was the earlier 22W-75. PHA is the name that Dynaudio used for the polymer cone before developing the one piece polypropylene cone for the 24W-75X. The 24W series are basically 8'' speakers , on 9'' frames. Why have you not considered having the faulty speaker repaired? Edited July 19, 2023 by VanArn
sockpuppy Posted July 19, 2023 Posted July 19, 2023 (edited) 32 minutes ago, Jakeyb77_Redux said: I would buy a pair if I were you and do as you suggested if keeping them. Or you could wait for the same pair to come up. That could take forever. A totally original pair of those Duntechs is gonna be a rare thing as the surrounds have gone on most of the woofers these days. Also the mids are not that durable either. So originality would be optimal but hard to find these days Regarding the Sovereigns you’re gonna need a HUGE room and very good amplification. The Princess are much more forgiving regarding room size and amplification. A lot of people that I’ve spoken to that have had both have preferred the Princess. Yes I have had my eyes on the market for some time now; Dynaudio 24w75 are hard to find, it would probably be easier to source genuine dilithum crystals from the Klingon prison world of Rura Penthe. To be honest I am not planning to sell the Princess's, after all I have wanted a pair for almost 30years, so my point was that I have a strong desire to keep them true/real and would always want to do a hand on heart sale good faith to the next person. I haven't got an amp yet Been waiting for the ME1200 Edited July 19, 2023 by sockpuppy 1
sockpuppy Posted July 19, 2023 Posted July 19, 2023 (edited) 49 minutes ago, VanArn said: I am mistaken about the 800401 version. It is not a coated paper cone model, that was the earlier 22W-75. PHA is the name that Dynaudio used for the polymer cone before developing the one piece polypropylene cone for the 24W-75X. The 24W series are basically 8'' speakers , on 9'' frames. Why have you not considered having the faulty speaker repaired? I tried , sent all 4 to Brisbane speaker repairs for refoaming. The back story is that I purchased the Princess's pair with a known broken seized driver. The seized driver driver coil didn't come out and ripped during extraction, I wasn't surprise it was unrepairable. Edited July 19, 2023 by sockpuppy 1 1
Jakeyb77_Redux Posted July 19, 2023 Posted July 19, 2023 38 minutes ago, sockpuppy said: Yes I have had my eyes on the market for some time now; Dynaudio 24w75 are hard to find, it would probably be easier to source genuine dilithum crystals from the Klingon prison world of Rura Penthe. To be honest I am not planning to sell the Princess's, after all I have wanted a pair for almost 30years, so my point was that I have a strong desire to keep them true/real and would always want to do a hand on heart sale good faith to the next person. I haven't got an amp yet Been waiting for the ME1200 I would buy the pair you find now and use them while waiting (if that’s what you want to do) for an original driver to come about. You could always sell the X pair then or keep for spares.
sockpuppy Posted July 19, 2023 Posted July 19, 2023 3 minutes ago, Jakeyb77_Redux said: I would buy the pair you find now and use them while waiting (if that’s what you want to do) for an original driver to come about. You could always sell the X pair then or keep for spares. Yes good advice I will do that. For those who want to Nerd up on Dynaudio 24W75 XL vs standard here are the spec sheets. 2
Jakeyb77_Redux Posted July 19, 2023 Posted July 19, 2023 3 minutes ago, sockpuppy said: Yes good advice I will do that. For those who want to Nerd up on Dynaudio 24W75 XL vs standard here are the spec sheets. Hmmm better bass, now the discussion starts. Place them as the top or bottom pair
sockpuppy Posted July 19, 2023 Posted July 19, 2023 4 minutes ago, Jakeyb77_Redux said: Hmmm better bass, now the discussion starts. Place them as the top or bottom pair The broken one is Left Bottom, so knee-jurk is bottom. 1
sockpuppy Posted July 19, 2023 Posted July 19, 2023 (edited) It does actually look like the XL where used at Duntech. Am I wrong in thinking the Crown Prince and Princess are analogous? Although it is model 87385 vs 87361, this is really doing my head in. This is interesting is anyone here dxtimages from https://www.diyaudio.com/community/threads/duntech-crown-prince-dynaudio-woofer-replacement.371178/post-6627969 So looks like the 24 w XL 8 Ohm was used in crown price Edited July 19, 2023 by sockpuppy
Xylotuol Posted July 19, 2023 Posted July 19, 2023 hello, I have a proposal to remanufacture the duntech logo for 50 euros each. Does this interest anyone? the price should be reduced if we order more than 2 The problem is I'm in Europe (France)... Tell me Regards Xylotuol
Andythiing Posted July 20, 2023 Posted July 20, 2023 17 hours ago, Xylotuol said: hello, I have a proposal to remanufacture the duntech logo for 50 euros each. Does this interest anyone? the price should be reduced if we order more than 2 The problem is I'm in Europe (France)... Tell me Regards Xylotuol Yeah nah 1
sockpuppy Posted July 20, 2023 Posted July 20, 2023 (edited) Disappointingly, after getting my drivers back, plugging them in, I tested the Princess. with an old Rotel Amp. All three drivers were working, including both tweeters. However, upon closer inspection, it appears that all four Scan-Speak 13M / 8640 drivers are silent. I could have imagined one or, at worst, two not working, but the fact that all four are malfunctioning seems odd—what are the odds of that happening? Could this issue be related to the crossover? What to do next? Crossovers look OK, cannot see anything physically wrong with the capacitors The only thing a little funky is the a few of the resistors, however I think I am just seeing solder flux rather than a problem Edited July 20, 2023 by sockpuppy
VanArn Posted July 20, 2023 Posted July 20, 2023 There are many instances of ScanSpeak drivers going open circuit as a result of electrolysis at the connection of the flexible braid to the voice coil lead out wires. The condition is indicated by a dark patch under the adhesive holding the joint to the cone. Delicate repair work is needed as the cone is fragile. 2
kelossus Posted July 20, 2023 Posted July 20, 2023 39 minutes ago, sockpuppy said: Disappointingly, after getting my drivers back, plugging them in, I tested the Princess. with an old Rotel Amp. All three drivers were working, including both tweeters. However, upon closer inspection, it appears that all four Scan-Speak 13M / 8640 drivers are silent. I could have imagined one or, at worst, two not working, but the fact that all four are malfunctioning seems odd—what are the odds of that happening? Could this issue be related to the crossover? What to do next? Had the same experience with my first pair of Princess'. All 4x Scanespeak drivers were DOA. Like VanArn stated the braid wire had gone open circuit. 1
Jakeyb77_Redux Posted July 20, 2023 Posted July 20, 2023 @sockpuppy yes the mids are a known problem speaker. This is why I have collected as many spare parts for this model speaker as I can find as they are VERY rare especially in working order. @kelossus is currently searching for some mids as well. While these Duntech speakers are great, unfortunately being so old they have major problems if you have any issues at all due to the unavailability of parts. You may be able to get the mids repaired. I think Atilla’s son Adam has been repairing speakers after his Dad passed away sadly. Search the forums for a contact number he’s in Thomastown
sockpuppy Posted July 20, 2023 Posted July 20, 2023 13 minutes ago, kelossus said: All 4x Scanespeak drivers were DOA. Hmmm, OK same problem then, all 4 silent. Has anyone had scan-speak mids repaired successfully? 8 minutes ago, Jakeyb77_Redux said: You may be able to get the mids repaired. I think Atilla’s son Adam has been repairing speakers after his Dad passed away sadly.
kelossus Posted July 20, 2023 Posted July 20, 2023 Just now, sockpuppy said: Hmmm, OK same problem then, all 4 silent. Has anyone had scan-speak mids repaired successfully? I've had all mine successfully repaired. Like most I am now looking for spares.
sockpuppy Posted July 20, 2023 Posted July 20, 2023 3 minutes ago, kelossus said: I've had all mine successfully repaired. Like most I am now looking for spares. Whas that with Atilla or someone else?
kelossus Posted July 20, 2023 Posted July 20, 2023 4 minutes ago, sockpuppy said: Whas that with Atilla or someone else? Queensland Speaker Repair
sockpuppy Posted July 20, 2023 Posted July 20, 2023 (edited) 45 minutes ago, kelossus said: Queensland Speaker Repair OK I used him to do the drivers refoam so I will ask , what sort of $ am I looking at? Edited July 20, 2023 by sockpuppy
kelossus Posted July 20, 2023 Posted July 20, 2023 1 hour ago, sockpuppy said: OK I used him to do the drivers refoam so I will ask , what sort of $ am I looking at? I believe you used Brisbane Speaker Repair. Different business but just as capable.
sockpuppy Posted July 20, 2023 Posted July 20, 2023 (edited) 39 minutes ago, kelossus said: I believe you used Brisbane Speaker Repair. Different business but just as capable. Opps ... Brisbane or Queensland ... all the same place for me Edited July 20, 2023 by sockpuppy 1
Jakeyb77_Redux Posted July 20, 2023 Posted July 20, 2023 (edited) On 19/7/2023 at 5:55 PM, sockpuppy said: It does actually look like the XL where used at Duntech. Am I wrong in thinking the Crown Prince and Princess are analogous? Although it is model 87385 vs 87361, this is really doing my head in. This is interesting is anyone here dxtimages from https://www.diyaudio.com/community/threads/duntech-crown-prince-dynaudio-woofer-replacement.371178/post-6627969 So looks like the 24 w XL 8 Ohm was used in crown price The Crown Prince and Princess were using the same designs (obviously the cabinets changed also. The CP had the sock. And your Princess and mine are different also) and speakers but drivers changed as they saw fit. Some have different iterations of the D28 tweeter also. John Dunlavy loved the Scan Speak mid and I haven’t seen any with a different mid range. The woofers would be all different depending on what was new/available etc I’d say. My woofers are definitely all 6ohm from factory as I checked them all the other day. Yours would have been carefully matched to the crossover so I would try and replace like for like no matter what other people’s speakers came with. But you gotta get what you can find available I suppose. Edited July 20, 2023 by Jakeyb77_Redux
sockpuppy Posted July 20, 2023 Posted July 20, 2023 Anyway want to guess what Ohms these are ? From Dynaudio Recital loudspeakers apparently. They have the felt at the rear that probably pushes them to the 24W75 XL type. https://www.ebay.com.au/itm/185938236637?mkevt=1&mkcid=1&mkrid=705-53470-19255-0&campid=5338381868&toolid=10001&customid=ef4dcf58-26d9-11ee-8d73-636437633039

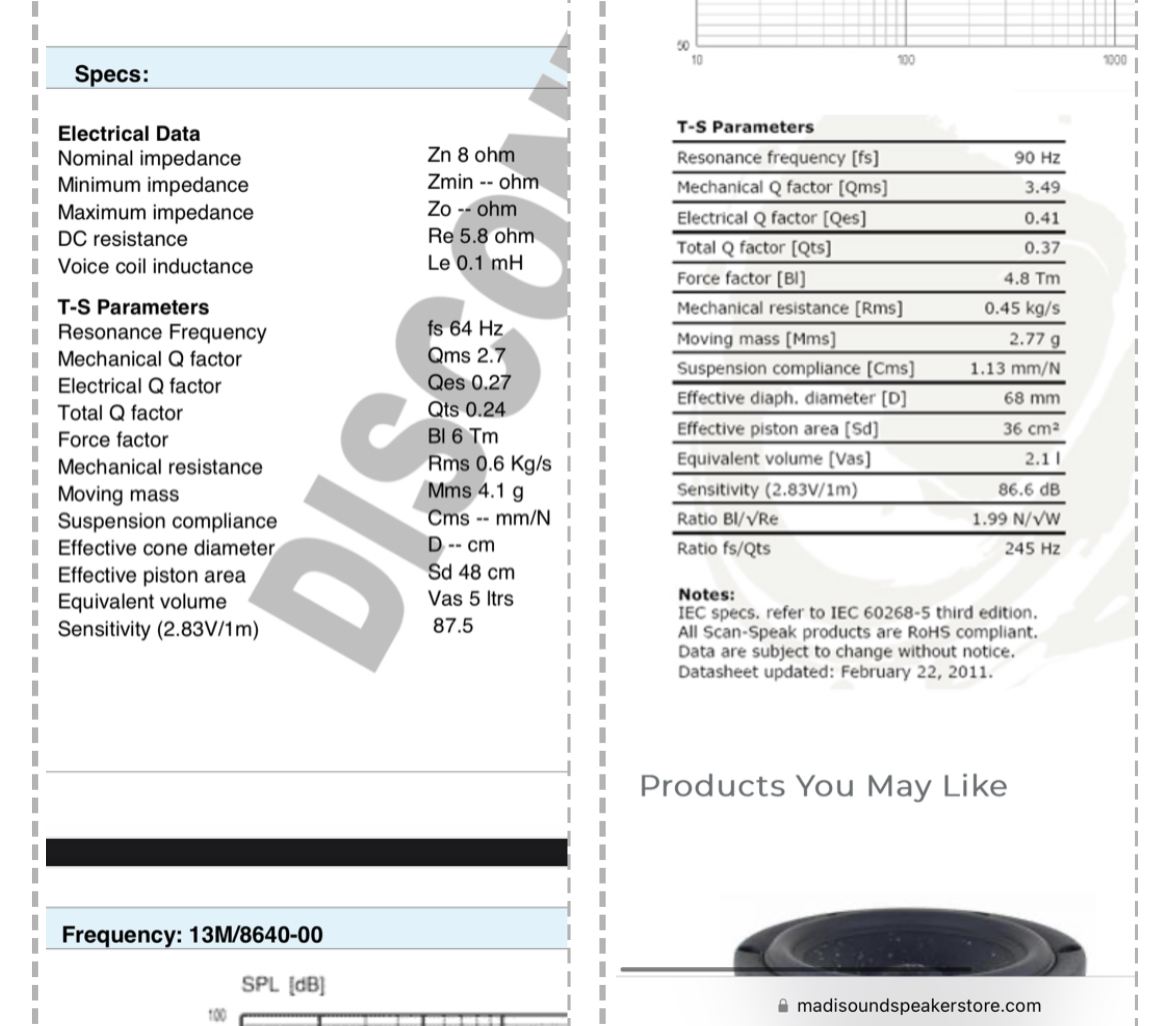

Sub Sonic Posted July 22, 2023 Posted July 22, 2023 Has anyone tried this driver as a replacement for the 13M? Not cheap but might be worth a look at if someone is really stuck. https://www.madisoundspeakerstore.com/approx-5-midrange/scan-speak-13m-midrange-replacement-speaker/
Jakeyb77_Redux Posted July 22, 2023 Posted July 22, 2023 2 hours ago, Sub Sonic said: Has anyone tried this driver as a replacement for the 13M? Not cheap but might be worth a look at if someone is really stuck. https://www.madisoundspeakerstore.com/approx-5-midrange/scan-speak-13m-midrange-replacement-speaker/ Have you compared the specs @Sub Sonic? I’d be keen to try them if they were very close.
