Item: Seas L26ROY speker / subwoofer driver, pair
Location: VIC 3212
Price: $350,- ono for the pair
Item Condition: used but great, good-as-new save some dust
Reason for selling: down-sizing
Payment Method: Pickup - Cash, Paypal +3%, COD Only

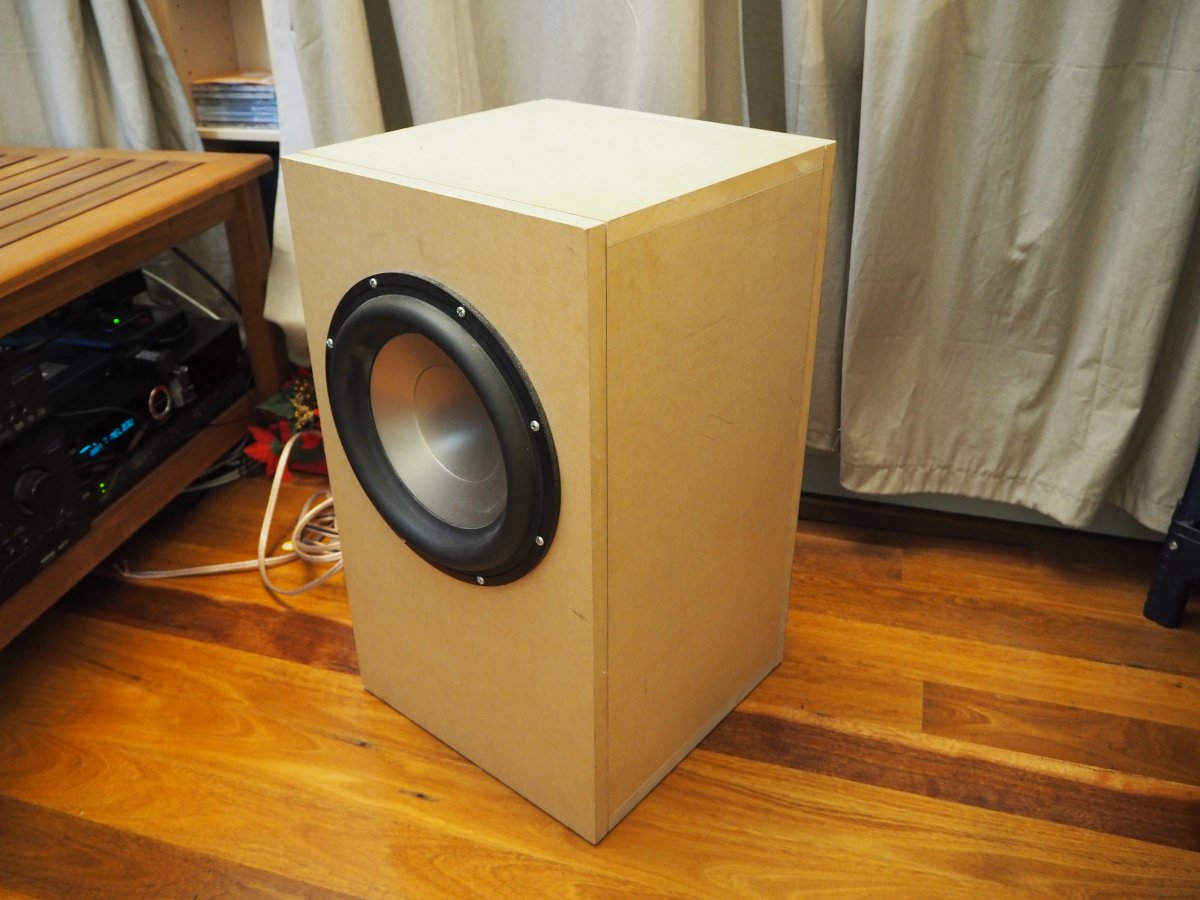

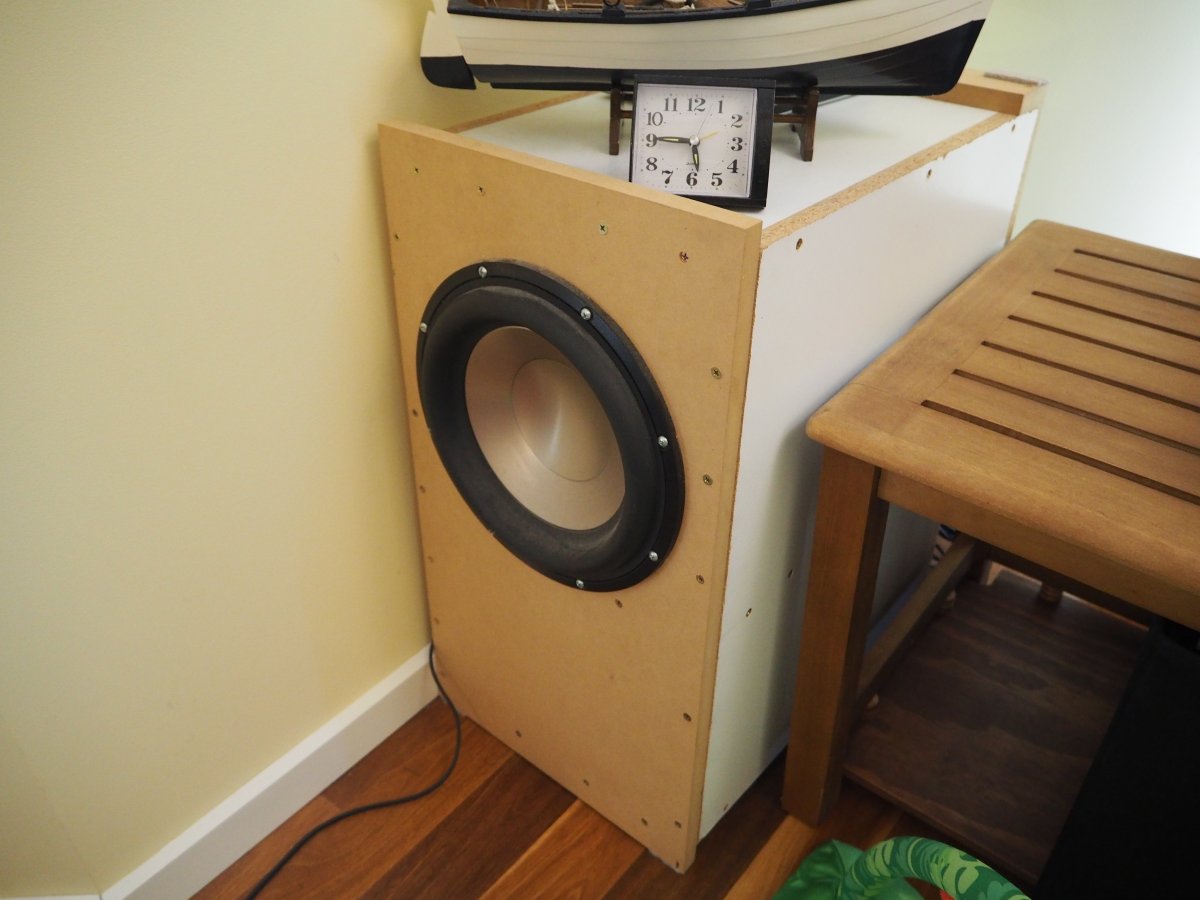

Extra Info: First owner, bought the pair new some three years ago. These are the low-impedance, low cone mass version of the L26 subwoofer/woofer driver that's suitable for both home theatre and music duties. I really like these as they have decent oomph but are not impossibly large. Don't be fooled by the subwoofer-wise diminutive 10-inch size, a pair of these will shake the slab in our house when Tom Hanks arrives on board of the Polar Express... extremely stiff aluminium cone and subber surround ensure cone break-up modes are both well controlled and north of 1 kHz, so also could be used as the low-frequency drive in a 3-way or 4-way set-up. They're not claustrophobic either, will happily reside in a sealed box of 40 litres internal volume, one of which can be offered as an option for the preferred local pick-up, in a beautiful (!) raw mdf finish; the model ship or the alarm clock are not being offered as part of this deal. I do have the original boxes so could ship these, however they are something like 12 kg a pop when packaged. Could arrange drop-off  in Geelong area or western suburbs of Melbourne.



A couple project builds where this driver is used:

http://www.seas.no/images/stories/excel/coaxial/app_note/KingRO4Y_doc.pdf

https://www.loudspeakerbuilding.com/magazine/loudspeakermagazine-2012/mai-2012/_elroy-the-many-sided-seas-sub_8636,en,900969,4006



Specifications provided by Seas, reproduced below for convenience:

http://www.seas.no/index.php?option=com_content&view=article&id=400:d1001-04-l26roy&catid=94&Itemid=501



Nominal impedance: 4 ohms

Recommended Frequency Range: 20 - 1000 Hz

Short Term Power Handling: 500 W

Long Term Power Handling: 250 W

Sensitivity (2.83V, 1 m): 88 dB

Voice Coil Diameter: 56 mm

Voice Coil Height: 38 mm

Air Gap Height: 10 mm

Linear Coil Travel (p-p): 28 mm

Max Col Travel (p-p): 56 mm

Flux Density: 1.2 T

Magnet weight: 2.34 kg

Total weight: 10 kg

Coil Former Material: Glass Fibre (that's "No Eddy Currents")

Voice Coil Resistance: 3.1 ohms

Voice Coil Inductance: 0.53 mH

Force Factor: 12 N/A

Free Air Resonance: 22 Hz

Moving Mass: 107 g

Air Load in ICE Baffle: 4.0 g

Suspension Compliance: 0.5 mm/N

Suspension Mechanical Resistance: 3.7 Ns/mm

Effective Piston Area: 363 cm^2

VAS: 87 litres

QMS 4.14

QES 0.33

QTS: 0.31

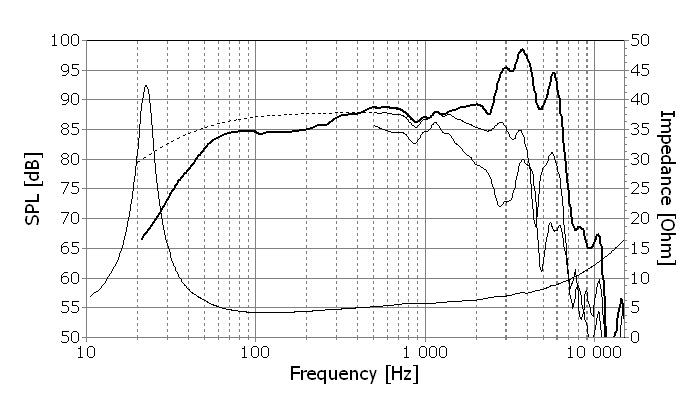

Frequency response plot (from Seas site)

f_design_by_seas_loudspeaker_subwoofer__d1001-04_l26roy.jpg.edfd48508be8f7f920bc4063b3295215.jpg

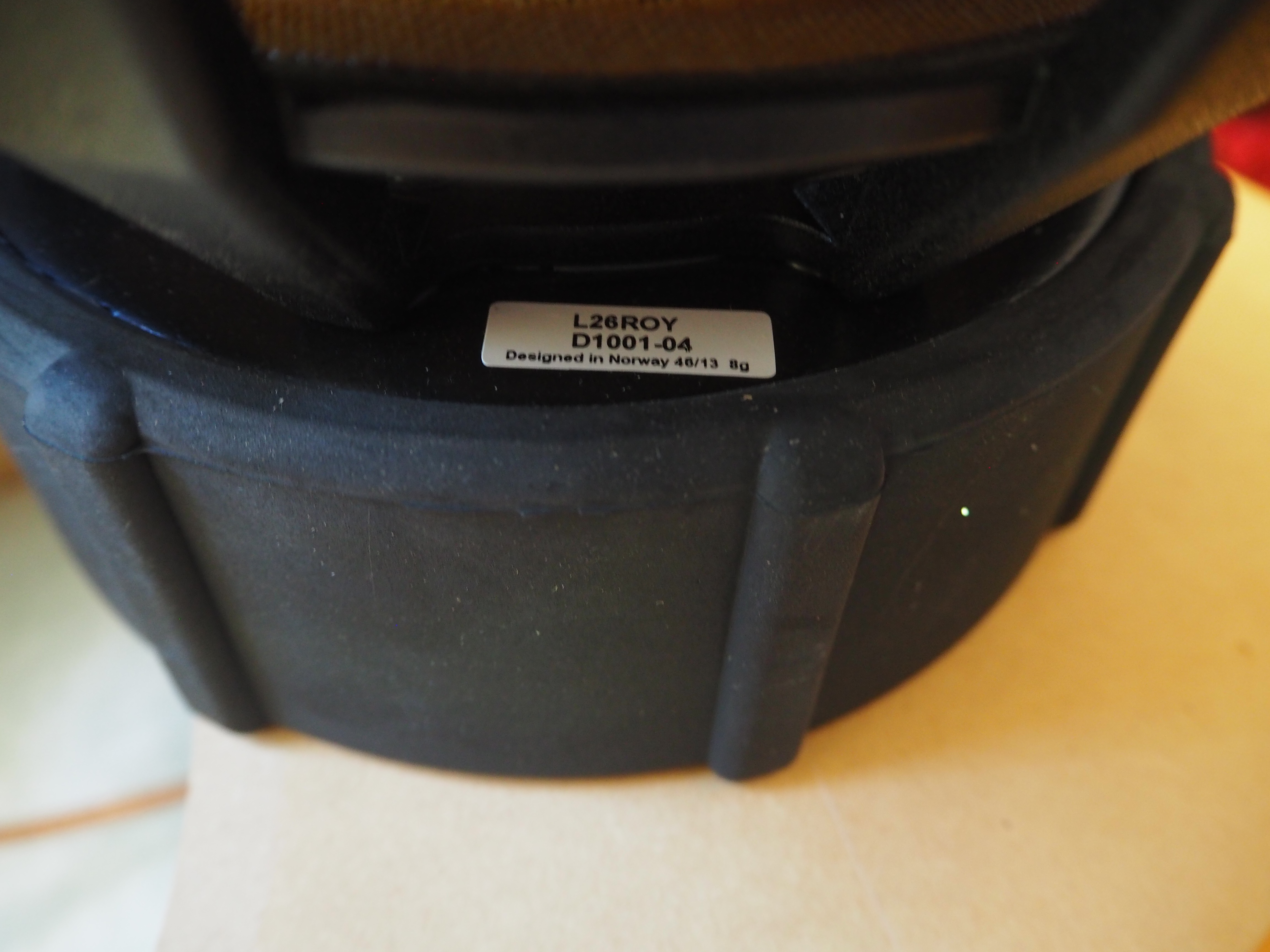

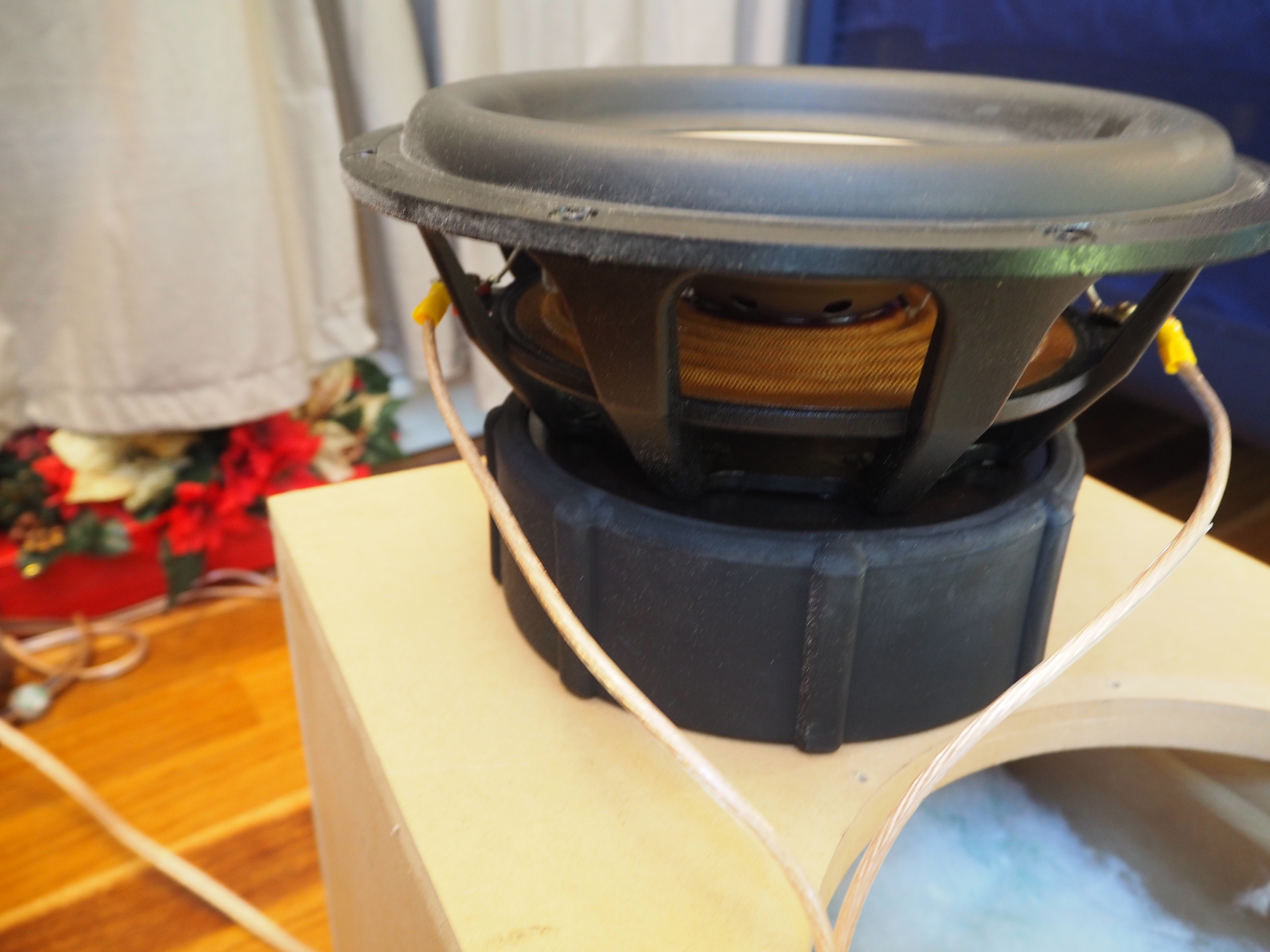

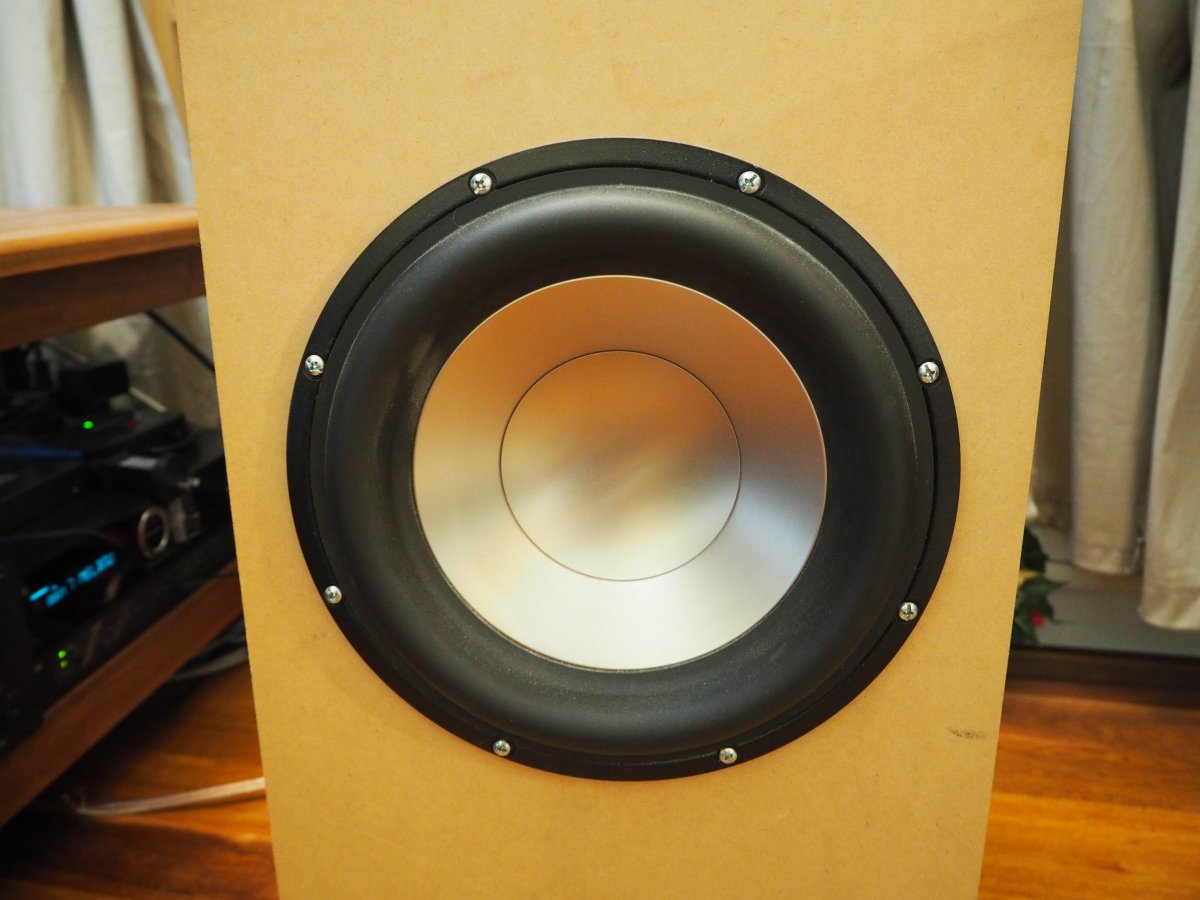

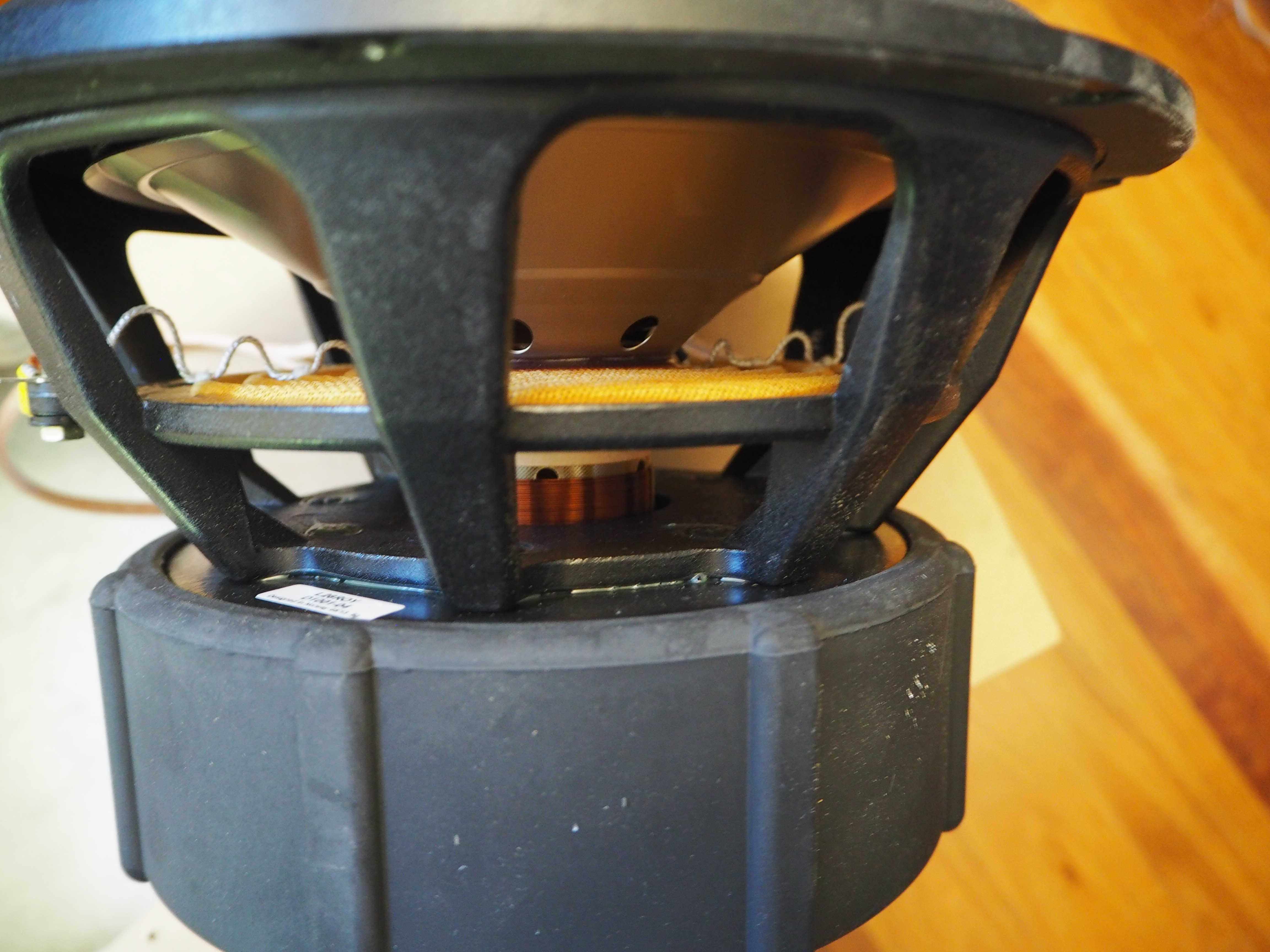

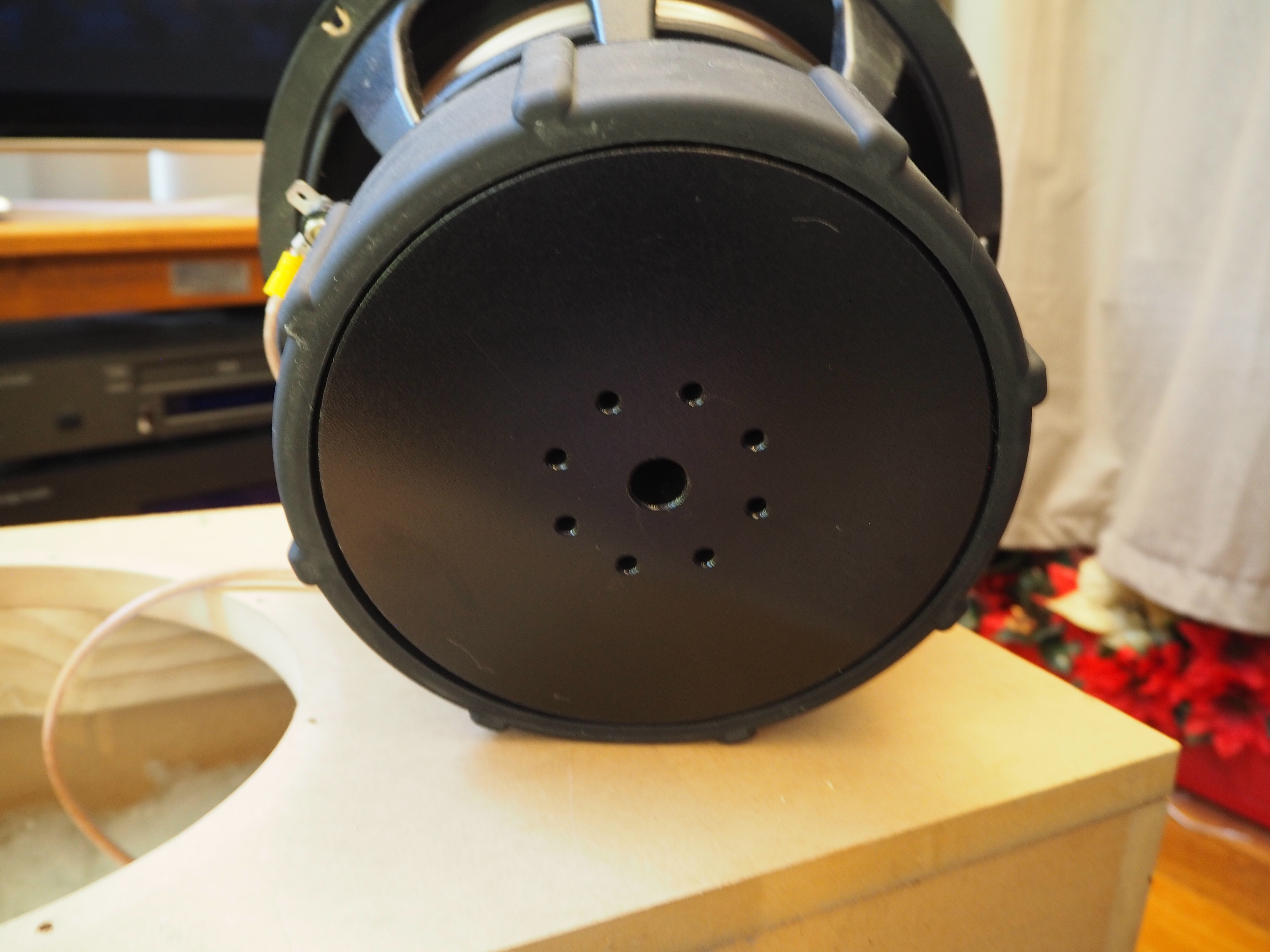

Pictures:
























Edited by lasseo
Price drop
