Guest Posted May 13, 2015 Posted May 13, 2015 Nothing happens with out the approval of Steve. Stevewantsmoore? :blink:
Malcolm Posted May 13, 2015 Posted May 13, 2015 I'll like to see a vid of Steve in the horn's when Dave carries out his first test sweeps
acg Posted May 13, 2015 Posted May 13, 2015 I'll like to see a vid of Steve in the horn's when Dave carries out his first test sweeps Poor Steve might not want the late morning sun anymore if that happens...
hochopeper Posted May 13, 2015 Posted May 13, 2015 Some might say it's always cold down here..... but it's gone above the forecast maximum today. 12.4 Poured some epoxy into the throat seams last night. Temp in the garage = 7. Bottle says do not use below 5. She'll be right! Yeah ... teens to mid twenties and hardly a cloud in the sky since that afternoon it got a bit crazy around here a few weeks ago.
Guest Posted May 13, 2015 Posted May 13, 2015 (edited) I'll like to see a vid of Steve in the horn's when Dave carries out his first test sweeps Edited May 13, 2015 by Dirty_vinylpusher
davewantsmoore Posted May 13, 2015 Posted May 13, 2015 I'll like to see a vid of Steve in the horn's when Dave carries out his first test sweeps Steve has sat through a lot of sweeps / tones. He prefers other genres
L J T Posted May 14, 2015 Posted May 14, 2015 (edited) Nice work Dave - My cat always inspects all my work also Did some more work on the enclosure today. I cut the front baffle down to incorporate a taper that leads to the bottom of the enclosure. The bottom chamber will be heavily braced and sand filled. Here's how I attached the side bottom panels and the bottom panels - you guessed it - more biscuits Dry fit now and ready for gluing tonight. The bottom brace in the bass enclosure is still loose as this will add an extra glue point to attach the vent when the rear panel is attached. It's another way of stiffening the enclosure, but it appears skewed in the picture because it is loose. Edited May 14, 2015 by L J T 1
mwhouston Posted May 28, 2015 Posted May 28, 2015 This week I finished and posted off to a guy in Oslo Norway a Bruce Heron design MC phono preamp ("Mimic") based on the OPA2134 OPAMP. Then built two DC blockers ("The DC Duffer") for a fellow SNA member which were collected last night. So a big couple of weeks. I have since had a request for another tube MM phono preamp. I just happen to have a tube preamp kit which has never even been opened. I have had it for near twelve months. Today I hope to assemble the cct. brd. Even of the request doesn't lead to a sale I have wanted a tube phono preamp for myself after building one for a Melboure Audio Club member. I think the iron is still hot from the all the work to date. Here we go again.
murrmax Posted May 29, 2015 Posted May 29, 2015 (edited) I'm planning to build a 25hz (front loaded) horn subwoofer, and use it as an ottoman / table / footrest for the listening room. I reckon this will be the queue to get rid of the 3x subwoofers. @@davewantsmoore According to some, it's better to have multiple low frequency sources rather than one, look forward to your experiences with this; How big is your room ? Edited May 29, 2015 by murrmax
DQ828 Posted May 29, 2015 Posted May 29, 2015 Not exactly audio but it helps me when I'm building audio It's a sensor driven power point to use mainly with my vacuum cleaner. I got sick to death of bending down & fighting with the switch to turn it on & off over & over & over. Now all I have to do is wave my hand in front of the sensor and it turns the vac on, wave my hand again and its off. I can turn the sensor off & just use it as a normal power point as well. 5
DQ828 Posted May 29, 2015 Posted May 29, 2015 The Radi0kit 318 cct. brd. assembled. Is it a phono pre?
Guest Posted May 30, 2015 Posted May 30, 2015 Not exactly audio but it helps me when I'm building audio It's a sensor driven power point to use mainly with my vacuum cleaner. I got sick to death of bending down & fighting with the switch to turn it on & off over & over & over. Now all I have to do is wave my hand in front of the sensor and it turns the vac on, wave my hand again and its off. I can turn the sensor off & just use it as a normal power point as well. Where did you get the sensor from?
awty Posted May 30, 2015 Posted May 30, 2015 Let us know what you think of it mwhouston when you get it up and running. Thought about getting that kit myself once. 1
bullet Posted May 30, 2015 Posted May 30, 2015 built some tiny bookshelf speakers using 4" Peerless HDS driver and SB Acoustics SB26STCN and im surprised how well they turned out.. Sealed box of 3lts so bass isnt very impressive, but the midrange and top end clarity and detail is pretty awesome.. I paired them up with a smaller woofer system comprising of twin 5" SB15NRX drivers in a 20lt box to keep is smallish with a built in 160 watt amp. Altogether they sound a large pair of floor standers haha very happy for a small bedroom application :-) 2

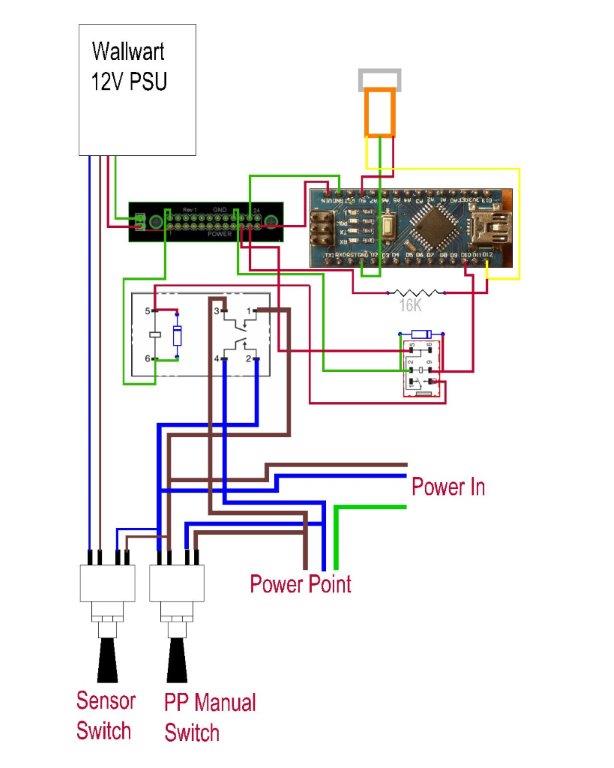

DQ828 Posted May 30, 2015 Posted May 30, 2015 (edited) Where did you get the sensor from? From here http://www.ebay.com.au/itm/181626812998?_trksid=p2057872.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT & the Nano from here http://www.ebay.com.au/itm/181417343726?_trksid=p2057872.m2749.l2649&ssPageName=STRK%3AMEBIDX%3AIT And this is what I did. I already had the PP, relays & PSU Edited May 30, 2015 by DQ828
DQ828 Posted May 30, 2015 Posted May 30, 2015 built some tiny bookshelf speakers using 4" Peerless HDS driver and SB Acoustics SB26STCN and im surprised how well they turned out.. Sealed box of 3lts so bass isnt very impressive, but the midrange and top end clarity and detail is pretty awesome.. I paired them up with a smaller woofer system comprising of twin 5" SB15NRX drivers in a 20lt box to keep is smallish with a built in 160 watt amp. Altogether they sound a large pair of floor standers haha very happy for a small bedroom application :-) Pictures
Silent Screamer Posted May 30, 2015 Posted May 30, 2015 http://www.ebay.com.au/itm/Automatic-DC-12V-24V-8A-Infrared-PIR-Motion-Sensor-Switch-For-LED-light-Stylish-/351172615781 Would these make it any easier?
DQ828 Posted May 30, 2015 Posted May 30, 2015 http://www.ebay.com.au/itm/Automatic-DC-12V-24V-8A-Infrared-PIR-Motion-Sensor-Switch-For-LED-light-Stylish-/351172615781 Would these make it any easier? It might do, ideally should should be able to adjust the sensitivity, Ive got mine set so I have to almost touch the sensor to turn it on & off, otherwise it will go off accidentally much more often. Aldi were selling some sort of remote PP that looked like it might work but I cannot find them on their website now.
bullet Posted May 30, 2015 Posted May 30, 2015 Will do @@DQ828 Ill have to take some when i go to the gfs place again.. i built them for her :-P

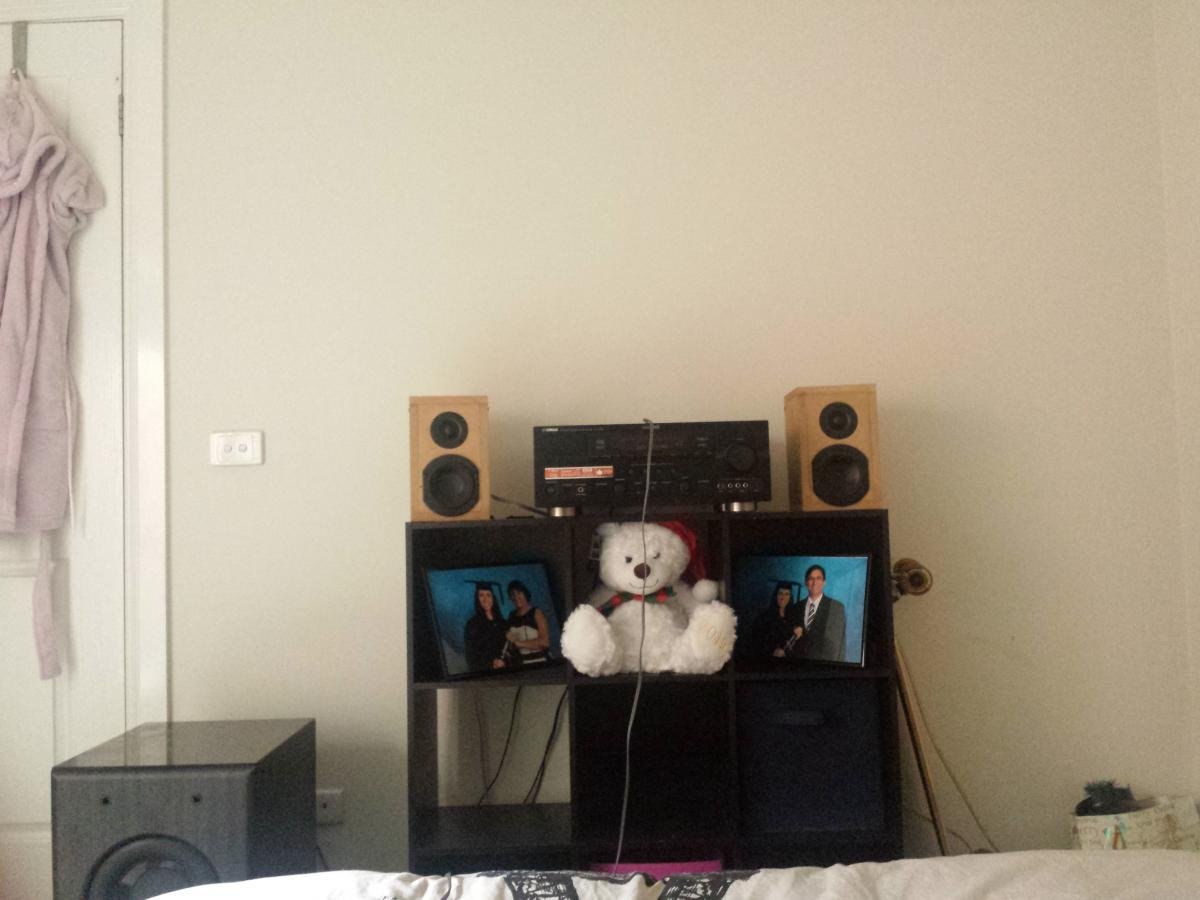

bullet Posted May 31, 2015 Posted May 31, 2015 Only ones i took while i was making sure they sounded ok haha stayed in here listening to tunes for a good 2-3 hrs coz the sounded so nice 4
Silent Screamer Posted June 1, 2015 Posted June 1, 2015 It might do, ideally should should be able to adjust the sensitivity, Ive got mine set so I have to almost touch the sensor to turn it on & off, otherwise it will go off accidentally much more often. Aldi were selling some sort of remote PP that looked like it might work but I cannot find them on their website now. I was looking at them in-store the other day when the better half was shopping, but it still brings you back to having to press a button.
