EXPIRED Marantz PM8005 integrated amp

[AnthonyCollins]

Further Information:

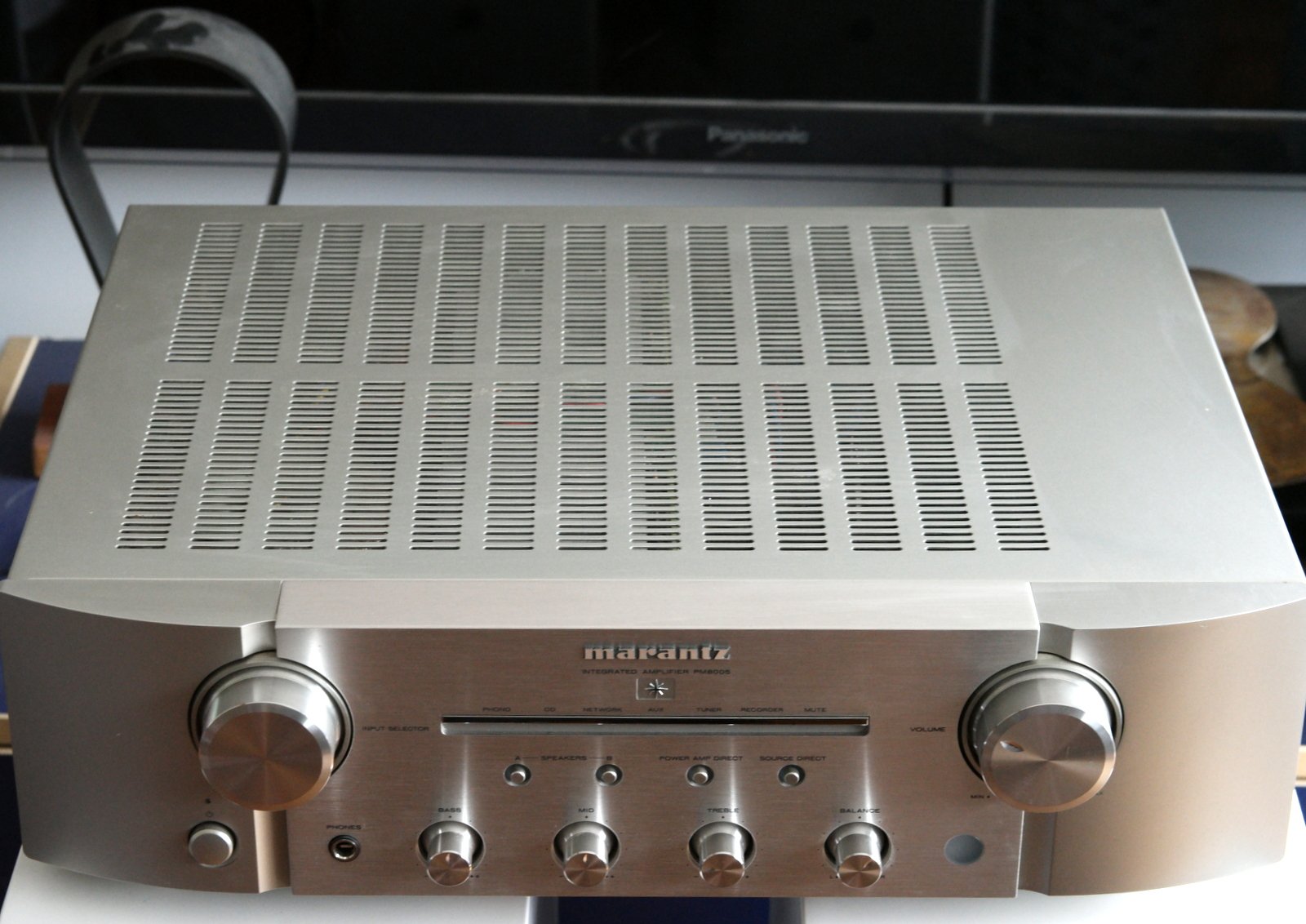

Marantz PM8005 integrated amplifier with phono pre.



Amazing sounding amp - I was really surprised when I up graded to this from my Marantz PM5004. Yes, the 8005 was three times the price, but still I didn't expect quite so dramatic an improvement. Even significantly better than my PM7004 Ken Ishiwata special edition.



You are welcome to try it out in Frankston, or collect it (without audition) in Melbourne CBD. Could probably deliver between Mornington and Melbourne. Includes the remote, but I forgot to take a photo.



Details:

Marantz PM8005 Integrated Stereo Amplifier, fully discrete current feedback integrated amplifier is perfect for audiophiles wanting both excellent music quality and flexible operation.

It offers a powerful 2 x 70 Watts into 8 Ω, while the symmetrical circuits ensure perfect image balancing. To guarantee a totally unique audio experience, Marantz designers have shaped and optimised the power handling characteristics and redesigned the large double shielded Toroidal transformer’s circuitry to optimise bandwidth power. The result is a current feedback amplifier with a massive energy reserve to drive even the most demanding of speakers with absolute ease. To further guarantee best sound quality, the PM8005 has current feedback HDAMs, as well as a triple-layer bottom plate to help eliminate vibration. The PM8005 also provides source-direct mode for the purest audio signal and Phono MM to enjoy your vinyls. It’s heaven.

https://www.marantz.com/en-au/product/hi-fi-components/pm8005



Key Features

    Integrated Current Feedback Amplifier with 2 x 70 Watts / 8 Ω rms, 100 watts / 4 Ω rms

    Marantz proprietary HDAM®-SA3 circuits for detailed audio reproduction

    Toroidal Transformer and high-quality customized components

    Triple layer bottom plate to minimize vibration

    High quality Speaker Terminals (A / B switchable)

    Discrete input buffer circuit

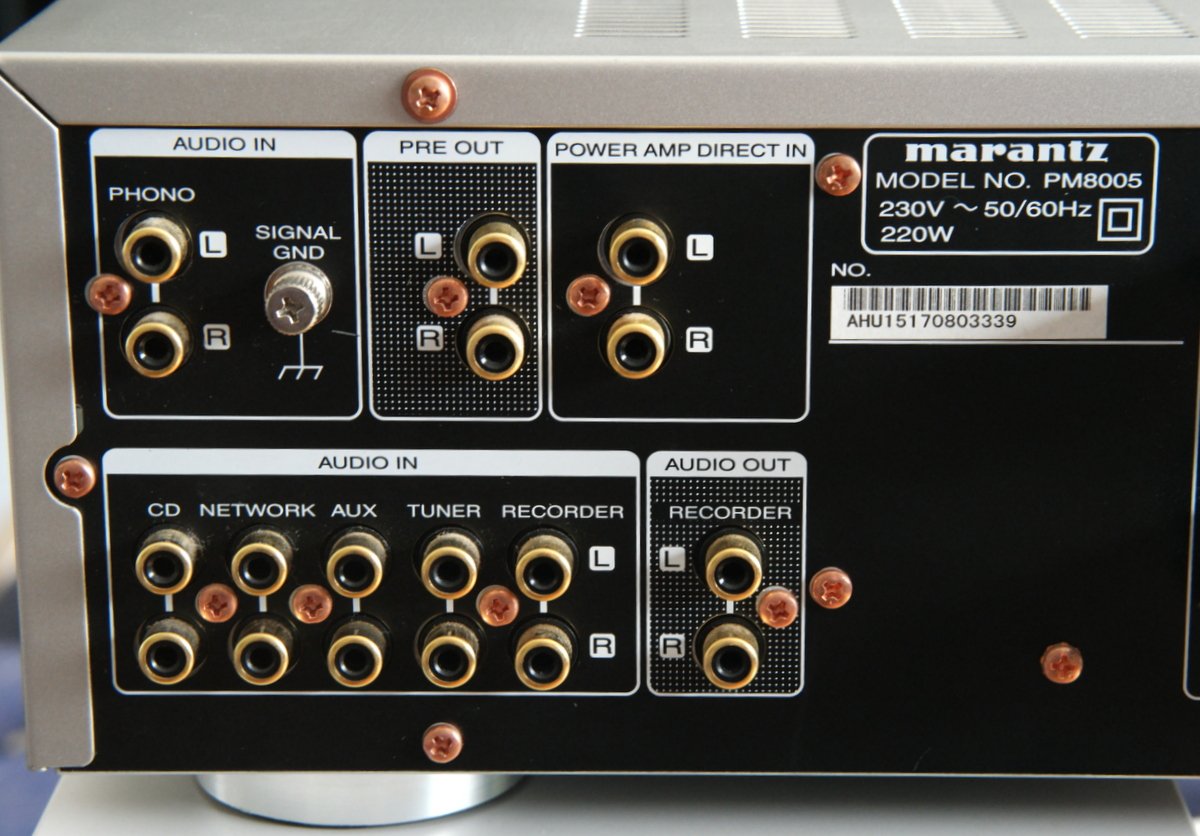

    Gold Plated Inputs/Outputs incl. Phono (MM) input

    System remote to control Amplifier, CD-Player and Network Player

Number Of Channels                     Stereo

Frequency Response                      5 Hz - 100 kHz

Watts RMS per Channel (4 Ω)      100 Watts

Watts RMS per Channel (8 Ω)      70 Watts

Input Sensitivity               200 mV (High Level) | 1.6 V (Power Amp Direct IN) | 2 mV (Phono)

Input Impedance             20 kΩ (High Level) | 15 kΩ (Power Amp Direct IN) | 47 kΩ (Phono)

Signal-to-Noise Ratio      106 dB (2 V input) (High Level) | 125 dB (Power Amp Direct IN)

Total Harmonic Distortion (THD)               0.02 %

AUX IN (Auxiliary Input)                                              1 Pair

Phono Input                                                    Yes

RCA Input                                                         6 Pairs

RCA Output                                                     1 Pair

Preamp Outputs                                            1

Dimension (H×W×D) mm              128 x 440 x 379 mm

Weight)               12 Kg
